Featuring an integrated waste bin-barrel safety architecture, our smart cat litter box delivers full upgrades to structure, controls, sensors and drive systems while prioritizing your cat’s safety. It also integrates air curtain odor elimination, leak-proof design, silent motor and waterproof litter pad, directly addressing consumers’ most common pain points, and redefining the new standard for integrated waste bin-barrel cat litter boxes.
1.Classic Architecture for Safety & Reliability
Built on a classic integrated waste bin-barrel safety structure, it protects your cat by fundamental design.

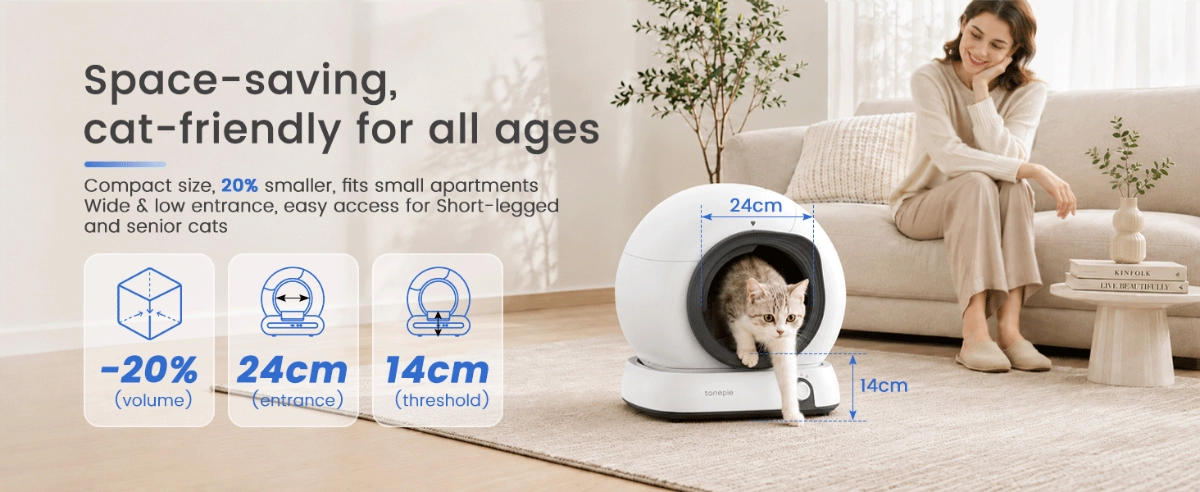

2.Compact Body, High Container Loading Efficiency
Large capacity in a compact size.
Greatly reduces ocean freight and last-mile delivery costs.
3.All-New Core System
Fully upgraded electronic controls, sensors and drive systems for enhanced weighing accuracy, quieter operation and longer product life.

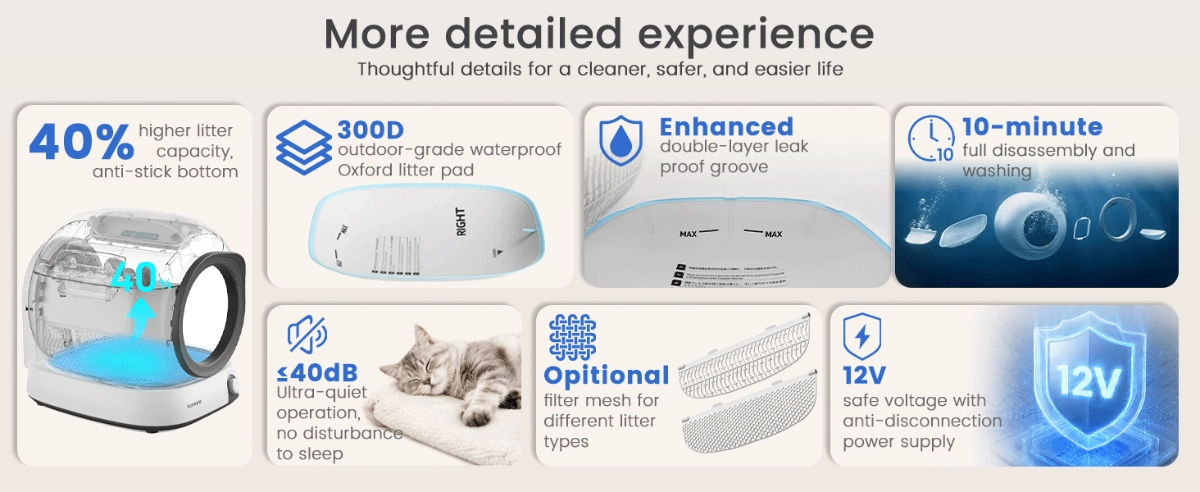

4.New Filtration Experience
Upgraded filter with a 30% increase in litter capacity.
Optional AB-type filter available for thorough cleaning, compatible with all litter types.
5.New Leak-Proof Experience
Reinforced double-layer leak-proof groove
Outdoor-grade waterproof Oxford fabric litter mat
Leak-proof strips at barrel joints

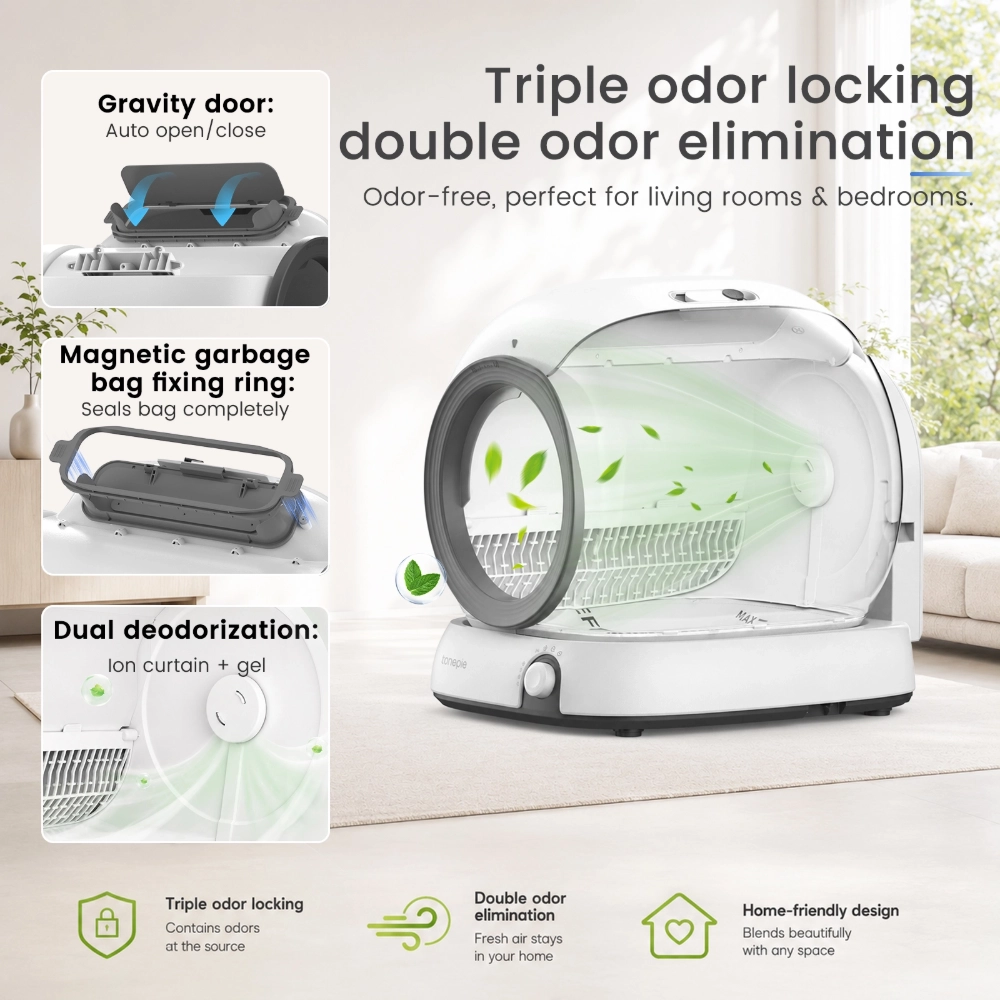

6.All-New Odor Purification System
Enclosed waste bin with an integrated internal air curtain.
Dual odor-locking technology for efficient, thorough freshness.

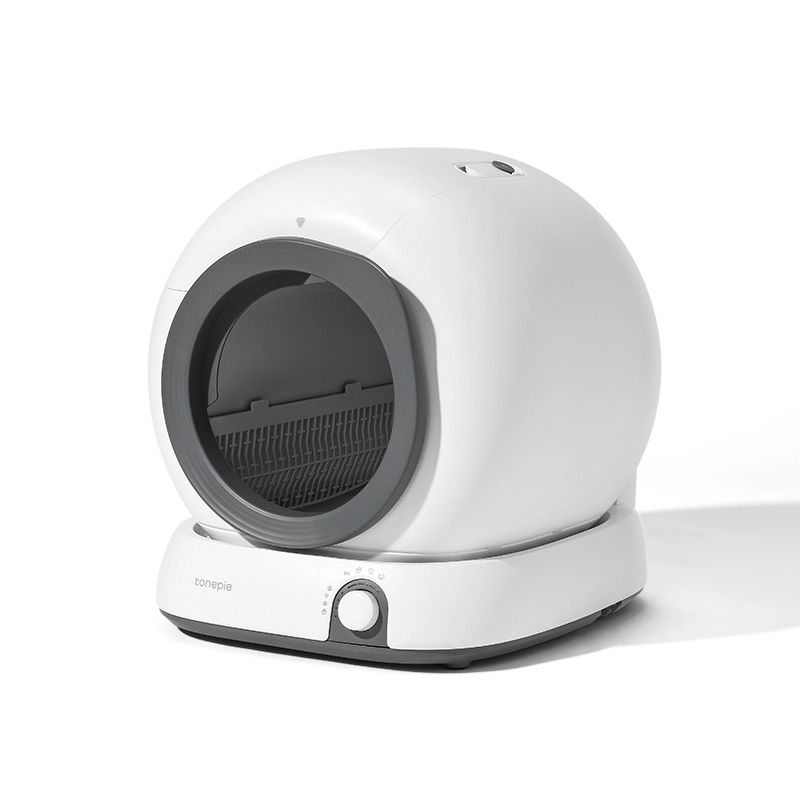

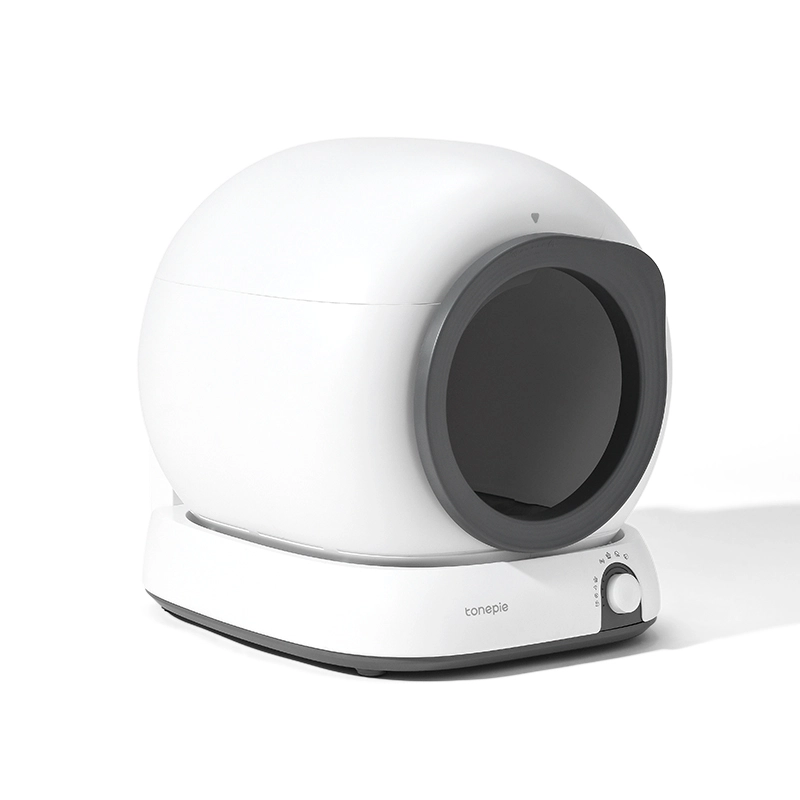

| Product Name | P1 Smart Cat Litter Box |
| Model | TPCBP-01 |
| Product Size | 480(W)×525(D)×500(H)mm |
| Packaging Size | 500(W)×540(D)×535(H)mm |
| Net Weight | 7.2kg |
| Gross Weight | 10kg |
| Container Loading Capacity（40HQ） | 450 units |
| Execution Standard | \ |
| Material | HIPS/ABS |
| Safety Design | Integrated Structure Of Barrel And Waste Bin |
| Weight Sensor | Stop When Cat Enters |
| Motor | DC Motor |
| Rated Voltage | DC 12V |
| Rated Power | ≤18W |
| Quick-Detachable, Easy-Clean | Yes |
| Barrel Capacity | 65L |
| Leak-Proof Design | Double-Layer Leak-Proof Groove, Seam Leak-Proof Strip |
| Material | 300D Waterproof Oxford Fabric with 5-level Water-Repellent Coating |
| Quick-Detachable, Easy-Clean | Yes |
| Various Filter Options | （A）Tofu Litter Screen/（B）Mineral Litter Screen |
| Material | HIPS |
| Odor removal method | Ion / Gel (Optional) |
| Air Circulation Method | Internal Air Curtain Deodorization |
| Consumables | Gel (Optional) |
| Waste Bin Door | Gravity Door |
| Garbage Bag Fixing Method | Magnetic fixing Ring |
| Waste Bin Capacity | 8.5L |
| Operation Method | Knob |
| Display | No |
| Lighting | 4 Status Lights + 4 Functional Lights |
| Multi-Cat Identification | No |
| OTA | Yes |
| IOT | tuya |
| Waste Nearly Full Indicator | Count Alert |
| Working Mode for Specific Litter Types | Yes |
| Connecting | WiFi + Bluetooth |
| Network Connection | Auto |
| Working Mode | Auto/Manual/Timed/Sleeping/level/Replace Litter/Replace bag/Deep Cleaning |
| Anti-Accidental Disconnection | Yes |
| Accessories | Power Adapter, Garbage Bags (1 roll), Litter Trap Pedal,，User Manual, Quick Start Guide, Odor Eliminating Gel (optional), Leak-proof Tray (optional), Type A or Type B Filter. |
| Certifications | CE,FCC,UKCA,PSE,RoHS,Weee,ISED |
| Number | Category | Customizable Components | Customized Actions |
| 1 | Electronic Control | Mainboard | Select 5G & Wi-Fi Chip |
| 2 | Software | Local program | Custom Firmware R&D (PID) |
| 3 | Appearance | Brand & logo | Custom Logo |
| 4 | Barrel ring | Custom Colors | |
| 5 | Pedal | Custom Colors | |
| 6 | Barrrel or base and related parts | Custom Colors | |
| 7 | plastic trim | Custom Colors/Pattern | |
| 8 | partial appearance parts & structural components | Custom design & tooling | |
| 9 | Packaging Category | Outer carton | Custom print graphics |
| 10 | Other printed components (product labels, manuals, etc.) | Custom print graphics |
FAQs
At the initial product design stage, Jiqu sorts out universal pain points plaguing the smart cat litter box industry from both pet owners and distributors, and prioritizes resolving them entirely. These common drawbacks include insufficient safety performance, poor odor isolation, frequent litter leakage, bulky dimensions that drive up logistics expenses, and unstable product quality leading to excessive after-sales complaints. Solving these pain points delivers a superior user experience for pet parents while cutting distributors’ logistics and after-sales costs significantly.

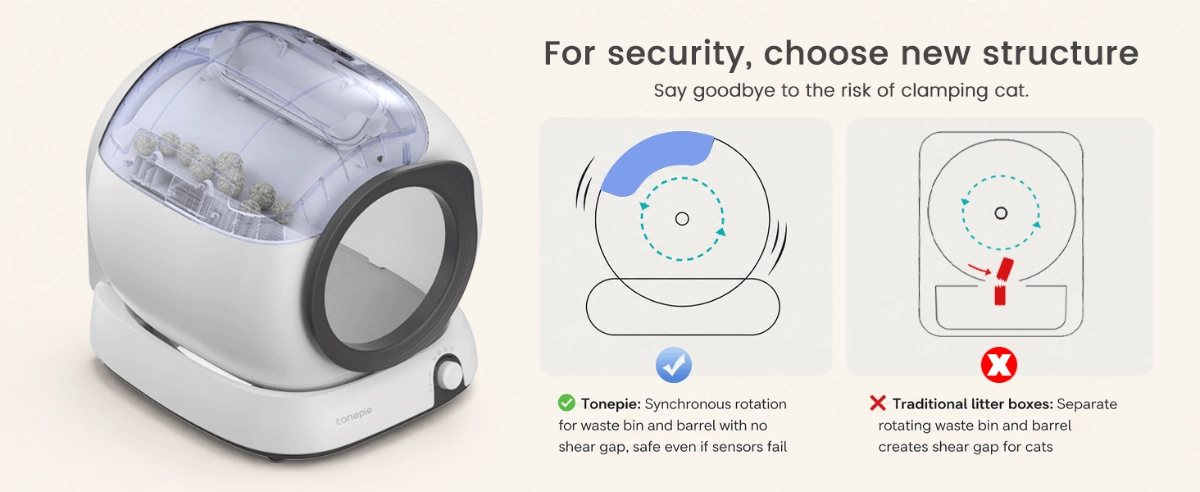

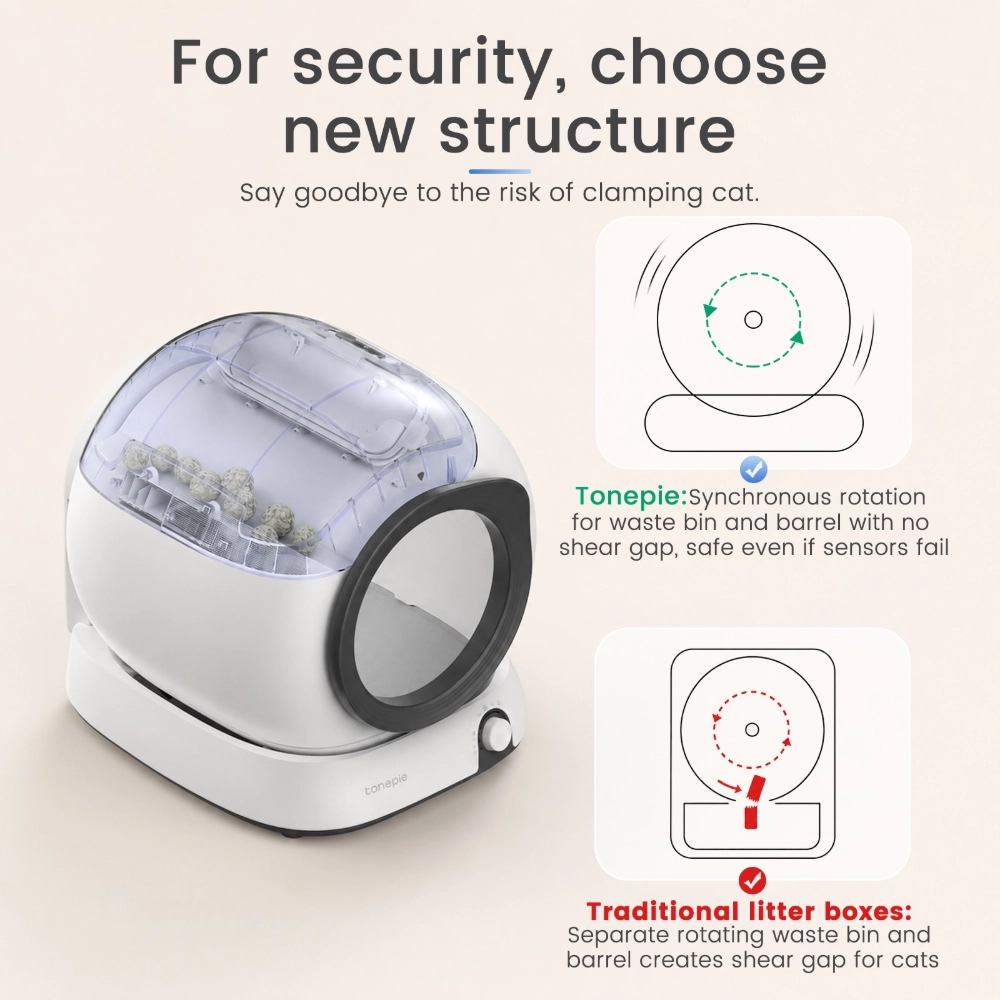

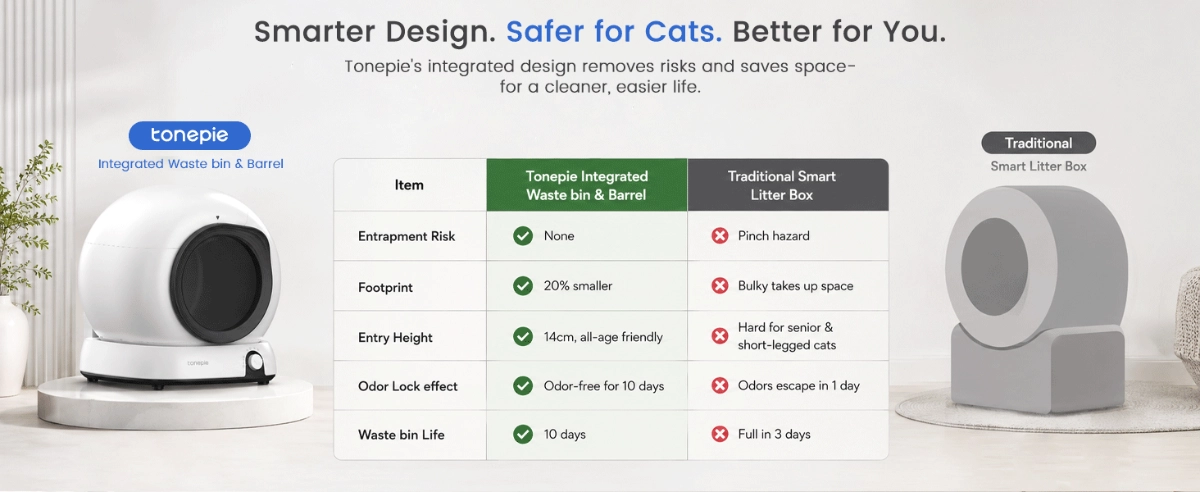

Jiqu’s smart litter boxes adopt the innovative integrated barrel-waste bin design. This structure fundamentally eliminates cat entrapment hazards, a risk conventional units rely on numerous sensors to alleviate. Its compact size saves space and greatly reduces both inbound and outbound shipping costs.
Building on our first-generation models, our third-gen integrated barrel-waste bin products launched in 2025 set a new benchmark for waste bin sealing and internal deodorization. Fitted with an all-new magnetic garbage bag fixing ring and an internal air-curtain deodorization system, they deliver class-leading odor control among equivalent products.
Our R&D team is made up of devoted cat lovers. Having witnessed the unpleasant mess caused by litter leakage from cats of all habits, our team is determined to fully fix this issue. After countless rounds of testing and upgrades across barrel-bin seams, anti-spill litter mat fitting and base tray design, our smart litter boxes boast competitive leak-proof performance against all market counterparts.
Innovation, refined details and stable reliability are the three internal criteria all Jiqu products must satisfy before launch to consumers.
Both smart litter box versions for the two platforms adopt the integrated barrel-waste bin structure and share the same core advantages.
The variant for Platform T features superior materials and refined structural details, while the Platform Q model delivers outstanding cost performance.
Critical core components including motors, electronic control systems and sensors maintain identical specifications and quality standards across both versions.
Jiqu currently runs two product lines: pet sanitation and pet wellness.
The pet sanitation line consists of smart cat litter box series tailored for Platform T and Platform Q, both built with the integrated barrel-waste bin structure.
The pet wellness line centers on our 2026 new release — the O1 Max 2-in-1 smart pet feeding & water fountain series.
In Q3 2026, upgraded variants equipped with AI cameras, multi-pet recognition and health monitoring functions will be rolled out for both product lines respectively.
